Quiet hardware. Useful answers.

A small screen for the things worth keeping.

InkMate is a local-first e-paper companion for brief voice requests, useful status, and carefully approved local actions.

Bring up the board Explore the architecture

Why InkMate

Most screens compete for attention. InkMate does the opposite: ask for one thing, glance at the result, and leave it there until you need it. The e-paper display is calm, readable, and persistent. The device is small enough to keep on a desk, shelf, or workbench without becoming another notification source.

The board handles buttons, audio, networking, cards, and playback. A trusted service on the local network handles speech and returns a short response. The last useful card stays visible without continuous power.

01

Ask

Hold BOOT, speak briefly, then release it.

02

Keep it local

The signed request goes only to your selected local service.

03

Read later

The answer stays on the 200 x 200 e-paper screen without continuous refresh.

04

Stay in control

Anything that changes another application needs a clear physical confirmation.

A companion for your own space

InkMate is useful when a small, private interaction is better than opening an app. A few examples:

• Ask a local home assistant for the state of home controls, then confirm a change with the physical button when it matters.
• Keep a compact home-automation status card where it is easy to glance at.
• Use it as a quiet desk assistant for short questions, timers, and reminders.
• Dictate a note or a work item, then leave the result on screen until you are ready to act on it.
• Keep an organizer card for the next task, a shopping reminder, or a brief family message.

InkMate does not need a third-party listener or a service that monitors what you are doing. Audio goes only to the local service you configure, and audio retention is short by default.

Connect what already runs on your computer

InkMate can talk to approved services that already run on the host computer. That can be a local home-automation bridge, a personal notes tool, a task list, or a small status service. The adapter host accepts only loopback HTTP endpoints or fixed local commands, never an arbitrary LAN endpoint or shell string.

Each connection starts disabled. You inspect its manifest, approve its exact fingerprint, and grant it to a specific device. Read-only requests return a card. Anything that changes state comes back to the device for confirmation first. The extension guide documents the current local-service interface and approval flow, including approved desktop applications such as the default browser and VS Code. Its host software installation guide links NikOS, DistroDeck, Ollama models, VS Code, and media applications.

Supported hardware

InkMate supports the battery-equipped, non-touch Waveshare ESP32-S3 1.54-inch e-paper board. The V2 board pictured here is the tested unit: ESP32-S3-PICO-1-N8R8, 8 MB flash, and 8 MB PSRAM. V1 and V2 have explicit build profiles, but the connected board must be inspected before flashing. Touch variants and unverified revisions are outside the current support boundary.

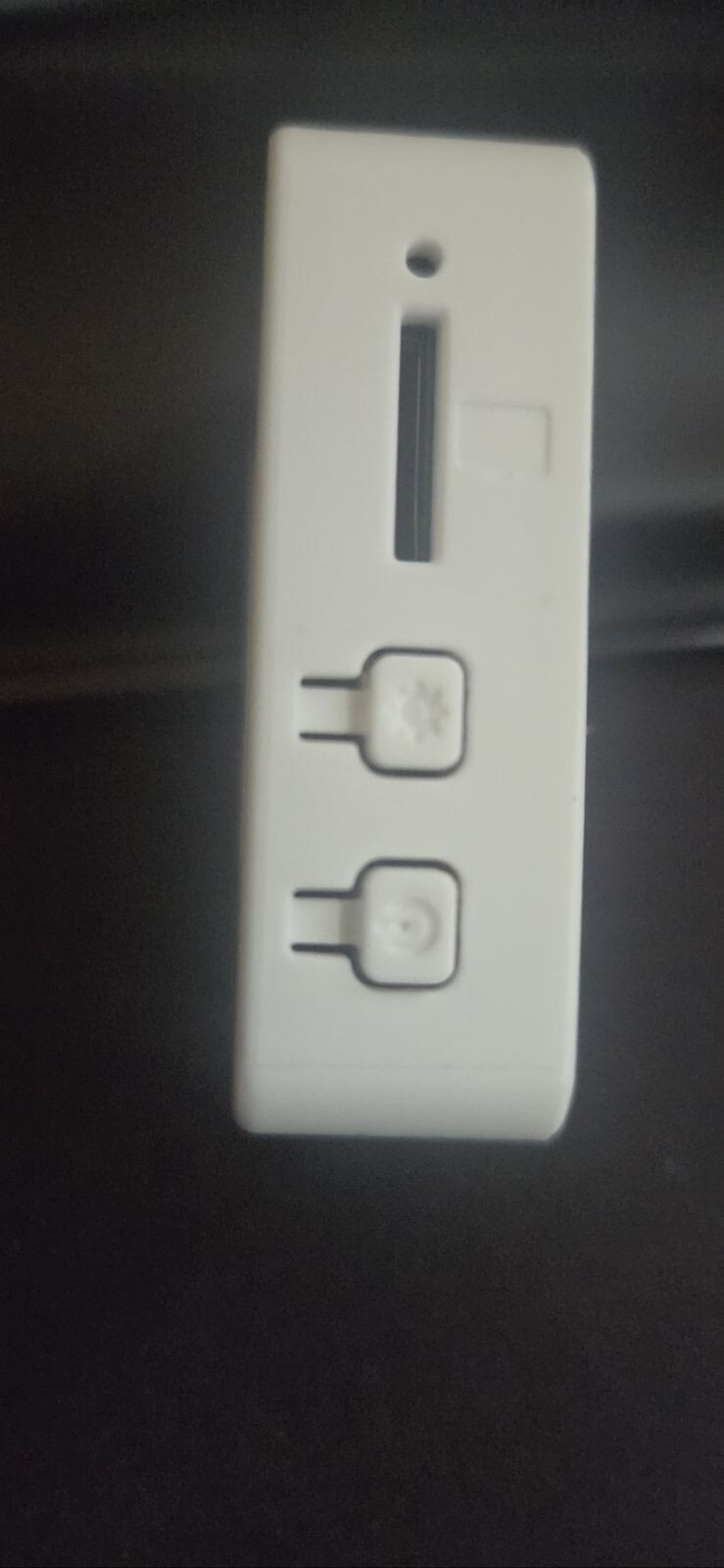

V2 side controls, including BOOT and PWR.

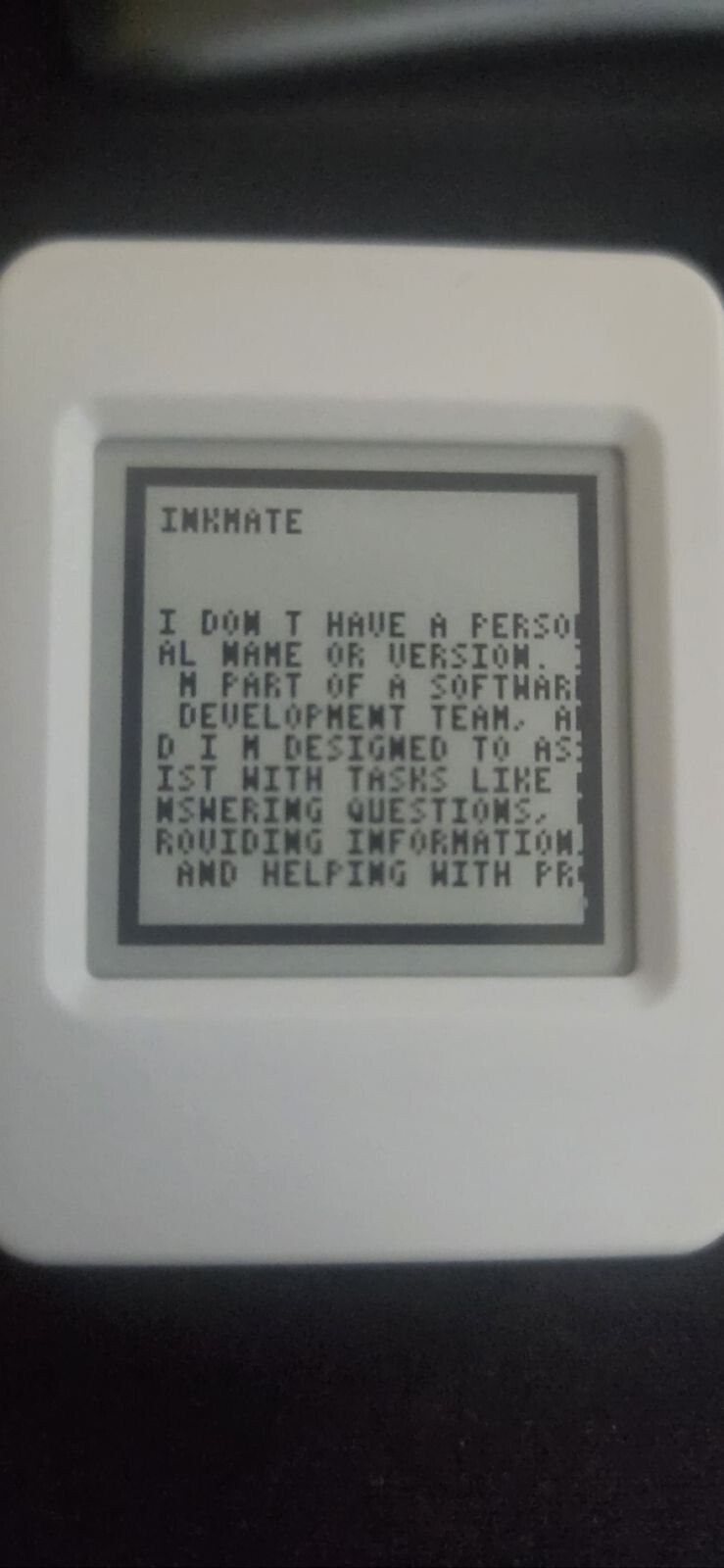

A returned response card remains visible on the e-paper display.

The hardware guide separates printed vendor markings from values verified on the physical board.

What happens after you speak

flowchart LR
  B[BOOT button] -->|hold| R[Bounded recording]
  R -->|signed request| G[Local service]
  G --> S[Speech transcription]
  S --> L[Response service]
  L --> C[Versioned response card]
  C --> E[E-paper display]
  L -. proposal .-> A[Allowlisted action]
  A -->|physical confirm| X[Fixed command template]

Requests include a device ID, timestamp, body hash, and signature. Any action is a proposal until the same device confirms it before expiry. Read the full architecture or inspect the protocol reference.

What is inside

Area	Responsibility	Start here
Firmware	Board profiles, state machine, provisioning, recording and display boundaries	Firmware guide
Local service	Authentication, cards, speech, and safe local integrations	Deployment guide
Protocol	JSON Schemas and representative messages	Protocol reference
Hardware	Evidence ledger, pin profiles, memory limits and bring-up gates	Hardware guide
Tooling	Local checks via script-helpers; reusable GitHub workflows via ci-helpers	Development guide

First run

1. Clone with --recurse-submodules and install Docker plus ESP-IDF 6.0.2.
2. Copy .env.example to .env, generate a unique high-entropy device secret, and keep the gateway bound to a trusted interface.
3. Start the gateway with docker compose up --build.
4. Identify the actual PCB revision and memory before selecting V1 or V2.
5. Configure a private provisioning PoP, build, flash over USB, and complete the hardware bring-up checklist.

Inspect before flashing

Product listings are helpful when choosing a board, but they do not identify the revision in your hand. OTA reboot and automatic deep sleep remain off until USB and battery reset behavior are verified on the physical unit.

Built to be careful

• No production credentials are included. Missing enrollment details stop setup rather than guessing.
• Only named, fixed command templates can run. There is no free-form shell.
• Audio and action grants are short-lived, and transcript logging is off by default.
• E-paper cards should not contain secrets because they remain visible after power loss.

Review the threat model
